Continuos Deployment in FatStart 0.3

Some years ago I was using Fatclipse for the development of a large italian government web site. I liked Fatclipse because using it I was able to develop with Eclipse (with nice completion for JSP tag and Java method ). Fatclipse had also a very nice feature as well: immediate deployment of JSP. Just hitting "save" was enough to get the code immediately deployed on ContentServer.

When time passes, things change. Now I am developing a large UK government web site but Fatclipse is virtually dead (I was unable to run in with the latest 7.5.x Content Server) and since I work on a Mac I do not have the luxury of using ContentServer Explorer (well actually I want to avoid the punishment of having to use it :D, but this is another story). Furthermore  the new CSDT (not yet tried acutally) requires he 7.6 (and I don't have it in my current project).

In the meanwhile I developed (for my own use) FatStart, that is basically a javascript installer for Content Server that can  install elements;  I extended to support XMLPost to upload the whole content model.

I developed FatStart as a packaging tool, to release a website called FatPhone. But  I found to be useful as a development tools, so for my latest projects I dropped CSE (finally! :))  and I am developing using FatStart on a Mac… And I am happy.

Well, almost. FatStart gives me the freedom to develop on my Mac machine,  allows  code sharing with other developer using  a version control system. But since it is a Javascript based installer, I had to "deploy" manually each template or cselement after a change, manually, with the browser.  I just need to click the "install" button, but it still very tedious.  Not very different from what you do with CSE, but tedious nonetheless. Every time I change something, before seeing the result I have to go on the Javascript installer, LOCATE the changed file, and deploy it.

It is a small step but annoying enough because it has to be done after every change, and I was missing the simplicity of Faclipse: just saving was enough to upload the changes code to FatWire… But suddenly I realized I could have also this with FatStart!

Making FatStart easier to use

I had just write some Java code that monitors jsp files for changes, and when it finds a changed file, upload it automatically. So one night, when I was too bored to write code for others, I decided to write code for myself and I extended FatStart adding this feature. Well, I had some code lurking in a forgotten folder that was already doing the upload of something to a CSElement.

Once completed, I commited, pushed on GitHub and it is now on FatStart v0.3 that I released today. You still have to install everything with FatStart as usual at the beginning. But now you can also launch the FatStart continuos deployer executing the script "deploy.bat" (or deploy.sh).

Well, the first time you have to change the config.prp to match your configuration, just in case you are not using a jumpstart in localhost listening in port 8080 or username and password are not standard.

The deployer will deploy all the elements. Note: it is not a complete deployer (although in the future could be), it just deploys ELEMENTS, not assets. So if you haven't created the Template and CSElements, you won't see it in you site. You can see the elements in the element catalog with CSE.

Also note that in current implementation it deploys ALL the jsp (files with extension .jspf) that it can find under folders CSElement and Template (FatStart deploys only the elements that are listed in the install.html). So be careful, you could overwrite something just dropping the wrong file in the directory.

After the first deployment, the deployer  keeps running and monitor work directories. When it finds a changed file  (a file whose  last modification date has changed since its previous visit) it redeploys the file immediately.

Keeping the deployer  up and running while you code has the net effect you can now edit the jsp with Eclipse and when you save it, within one second the file is deployed in ContentServer . An effect very similar to what I was having with FatClipse: just saving was enough to upload the file in Fatwire.

PS of course, if you don't want the extra step of having to clean the cache, remember to put the property "cs.nocache=true" in your futuretense.ini.

PPS. If you also have to code an URL assembler, a filter or other java code, add JRebel to your jump start kit, and you can have a complete no-deploy environment where you can change you Java code, your JSP code and get the result deployed with no intervention. Almost as luxurious as using PHP in the first place! Ok I am kidding, PHP is not that great as a programming language but it has some advantages... well it had I should say now...

Customizing the Preview

Content Server has a preview feature that, you may know, open the door to InSite.
It is actually an application to visually edit and compose pages.

It is a  very interesting although... I do not use it too much In my experience,  users want  from a CMS they just have to add the content, then the site is built more or less automatically.

So, in a large number of case I do no not use "InSite"; also following a best practice, I have a single layout. In this case,  the whole preview window is redundant, and some users complains about it. Furthermore, it is sometimes annoying and confusing: often you forget to apply the default template to your assets, and you have to select template and wrapper to use. Users just wants to preview a page and see the end result.

Luckily, you can easily change the preview window. The key is the property xcelerate.previewurlpagename in futuretense_xcel.ini. Changing this property allows  to call your own code to render the page. Let's do an example (real world code can be a bit more complex than this...).

Simplifying the preview window

I am showing here custom code to create a simplified preview window: when you click on the preview button, you will see directly the rendered page, with applied the standard  layout and without any intermediate frame.

Note that this trick has many limitations and requires that a number of conditions are met (you are basically crippling Fatwire to remove unwanted features):

• first, your users are not requiring InSite, so all the web pages are rendered starting from a single layout
• second, you don't need to preview the site in different dates
• third, you have a single site in your content server (although this limitation can be easily overcome).
• fourth, you are allowed to change the file futuretense_xcel.ini or you can ask your system administrator to do so.

So let's write our  "simple previewer". I will write the example referring to "FatPhone", my open source iPhone website for FatWire, but it can be applied to any site with straightforward modifications.

First step: you have to create a CSElement named fpSimplePreview with this code:

<%@ taglib prefix="cs" uri="futuretense_cs/ftcs1_0.tld"
%><%@ taglib prefix="render" uri="futuretense_cs/render.tld"
%><%@ taglib prefix="publication" uri="futuretense_cs/publication.tld"
%><cs:ftcs>
<publication:load
  name="theSite"
  objectid='<%=ics.GetVar("pubid")%>'/>
<publication:get
   name="theSite"
   field="name"
   output="site"/>
<render:calltemplate
   ttype='CSElement'
   tname='/fpLayout'
   tid='<%= ics.GetVar("eid") %>'
   site='<%= ics.GetVar("site") %>'
   c='<%=ics.GetVar("AssetType") %>'
   cid='<%=ics.GetVar("id") %>'
   slotname='layout'>
</render:calltemplate>
</cs:ftcs>

A couple of notes to this code: basically it is just a simple call:template to render the asset you are to previewing with a specific (fixed) layout.

Getting the publication name

In the call before, the only difficult part is retrieving the publication name, since the preview windows gets called with the publication id.   We have "almost" all the parameters: the AssetType and his id (mapped as c and cid), but we do not have the site name, but only his numeric id; call:template instead requires the site name.

Luckily you can get the site name from his id using  "publication" tags.

Note that those tags are, as far as I know, undocumented, although you can see his usage a lot if you give a look to the internals of Content Server (there  are many others undocumented tags hidden around) , and his usage is straightforward and consistent with the other (documented) tags.

Nonetheless, using the publication:load/publication:get is the fastest way to get the name of the site.

Extending for different sites and layout

The call:template before is just an example. If you have also a wrapper page you will have to add the "wrapperpage" attribute. Also, if you have more than one site, with different layouts, you will have to change the code and decode the name of the template from the name of the site.

Best practices are using a layout with a different site prefix for each site. For example in a CS with FirstSiteII and FatPhone, you will have "FSIILayout" and "fpLayout"

However, my code ha no hint of what the site prefix is, so you may have to add code like this:

<%
   if(site.equals("FatPhone") layout="/fpLayout";
  else if(site.equals("FistSiteII")) layout ="/FSIILayout";
  else ...
 %>

Configuring SiteEntry

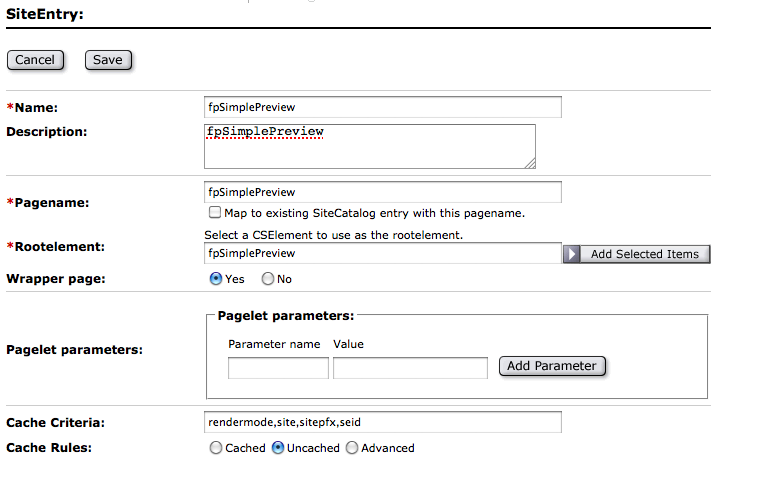

Second step: create a Site Entry. Now you have a CSElement doing the preview, that is not by default accessible in any way from the outside. But since the previewer gets called as a full page window  you have to create a SiteEntry; see below:

Remember to make it uncached.

Third step is changing in futuretense_xcel.ini the property and restart content server.

xcelerate.previewurlpagename=fpSimplePreview

Now, if you did all the steps correctly, clicking on the preview link will simply open the asset with the given, fixed template.

Some users will be then happy they do not have any more to see a frame, then select the template and the wrapper page . And stop complaining.

Creating Thumbnail with a Filter

When you create a flex family, you will actually create a number of assets peculiar for  flex families: Attributes, Parent and Content Definitions (collection of Attributes), Parents (defined by a Parent Definition), Contents (defined by a Content Definitions). But you also have Filters.

So, while other components are pretty well known,  Filters are a bit... underused, maybe because their function is not completely obvious.

A filter, basically, is a post processor for your content that is executed when you save or update a flex asset.

A filter is useful for functions like converting documents (for example extracting html from a Word document), analyzing a file (for example extracting information like the  size and the type), or for strange features a bit technical like "creating an attribute corresponding to a standard asset fields".  This feature is actually important, I will tell more about this in a future post.

Actually Filters are really powerful when used appropriately. The biggest problem is usually you have to code a Java class to implement a filter. But there are a few very useful filters, that can be used  easily with no coding since they are already available.

Using the Thumbnail Generator

One of the more interesting filter is the Thumbnail Generator that is included with FirstSiteII but can be easily used in your site.

Thumbnail Generator Filter is contained in the firstsite-filter.jar that is usually deployed with Fatwire. The filter however could not be immediately available if you do not have FirstSiteII enabled (and on a production system usually you should not...). So please check if you have that jar available in your site. If not, get it from any installation with the FirstSiteII installed.

The filter must be  enabled as well,  registering it in the Filters register. That is, adding a row in the database table Filter as in the following picture:

Note the ThumbnailCreator entry is mapped to "com.fatwire.firstsite.filter.Imaging".

Once you have done this, you can create a filter for your FlexFamily.

Creating the filter

Create a new filter for your flex family. Once created, in the list of available filters, your registered filter should show up, like in this image:

Now the filter must be configured. The work is not yet done.

Actually, the problem with the Thumbnail Generator filter is exactly how to configure it appropriately. It requires:

• the input attribute (that should be actually a blob attribute)
• the output attribute (also a blob)
• the size of the thumbnail
• 2 integer attributes that will store  the size of the original image
• 2 integer attributes that will store  the size of the thumbnail
• optionally also an attribute for the "aspect" ratio (that is: is the image vertical or horizontal)

All the attributes are mandatory and if you make a mistake, you are in trouble because you get a very unfriendly and uninformative error message. To debug the filter you have to enable the property

com.fatwire.logging.cs.firstsite.filter=TRACE

in the file

cs/WEB-INF/classess/common-logging.properties

Error messages from the log are informative enough and can help to fix the filter. You can always look to the filter definition in the FirstSiteII as an help:

Assuming you have configured it correctly, now you have to attach the filter to a content (or parent) definition. The filter requires the input attribute you specified. You do not have to add other attributes as they will be added by the filter when you save it. But the corresponding attributes must exist in the family.

Once you have done it, give a look to the following image for the result.

PS I noticed the Thumbnail Extractor is using A LOT of memory and has the tendency to generate out of memory. Fatwire Support may provide a better implementation of the thumbnail extractor filter.

Stress test a Fatwire Site with JMeter

I am often in charge of stress testing Fatwire sites for my customers. The tool of the choice for those missions is the wonderful Apache JMeter. In this post I  wrote a small tutorial about using it to stress test a Fatwire site.

Well, the site I am going to stress test now is just FirstSiteII, running in a JumpStartKit: not exactly a real-world case. Nonetheless I think the post is both instructive and useful, since the used techniques can be applied on real sites with no changes.

Preparing a test script

JMeter installation is easy: just download the tarball, unpack it and double click on the jmeter.sh or jmeter.bat launcher script.

Preparing a test is easy as well:  you just navigate the site with JMeter configured as a ProxyServer: it will intercept all the requests and create a script that can be run   by a large number of parallel threads.

You can create a test manually if you want, but recording browser behavior is faster. So, here is a step by step guide to record a test using a  JMeter proxy server.

First, add a Thread group to the Test Plan (it will be the target of our recording): click right button on Test Plan, then Add | Threads (Users) | Thread Group.

Second, create in the workbench an HTTP proxy server (click right button on Workbench, then Add | Non-Test Elements | HTTP Mirror Server).

Now you have a target and proxy server, and you can configure the proxy as in following image:

We can see JMeter Listening in port 8080 as a Proxy Server, capturing all the requests and storing them in the Thread Group we created in the Test Plan.  Note: change port if you have tomcat in port 8080! I usually have it in port 7001 but it depends on the version of your JumpStartKit.

The Thread Group is the entry point to manage requests that can be run as parallel threads, so it is vital for our stress test effort. We will see more on this later.

Third,  you can configure a Firefox to use JMeter as a proxy server. You can use any other browser, it just happens I love FireFox. See the image below for the firefox configuration; with other browsers you mileage may vary.

Don't forget to remove "localhost" from the "No Proxy" field (that is enabled by default)!

Ok, we are ready. You can navigate the site to record the  test. I used First Site II and navigated all the pages in the top menu (without going into the detail page). The result is shown below:

Now, I am almost ready to run a test, but since grouping of results is based on the names of the pages, I decided to separate Blob requests from Page requests. Also I grouped Util call (small elements calls) from full Page requests.

Basically I went through all the recorded entries and I renamed the requests to Page, Blob and Util depending on the parameters.

Now I am ready to perform a stress test. Well, actually I am going to perform a number of stress test with different number of threads (that simulate the number of different users).

Stress Testing FirstSiteII

Basically, in a stress test you have to check what is going to happen when there are 1, 5, 10, 20, 100, 1000 users accessing your site at the same time. So what I did is to run the test script changing the number of threads. This is basically just changing a parameter in the Thread Group configuration.

The first test run just with a single thread. It  gives a measure of the absolute performance of the site. So I configured the Thread Group as follows:

Running with those parameters gives the following results:

Note that repeating the test usually it does not give EXACTLY the same results but normally they are similar.

Basically, this test says that with a single user, JumpStart can deliver more or less 1 full page per second and serve up to 7 requests per second (including images and sub elements of a page). Note that a page is served on average in a second.

Increasing Concurrency

A single user, accessing a site and opening pages like a mad is not anyway a real model of the real world usage. What we really need to know is what is going to happen where there are more users accessing the site at the same time. So I  increased the number of concurrent users.

If we try with 5 users we get a better result:

An application server has normally some capacity to handle concurrent request that we are exploiting.

Note the throughput with some concurrent users is higher, 2 full pages and 15 requests served per second, but a single page on average takes 2 seconds to be delivered...

Let's test with 10 users now:

Better throughtput, 3 full pages per second and 2.5 seconds to get on average a full page. This is more or less the optimal result with a single site running on Fatwire Jump Start using Hypersonic SQL as database.

Note that we cannot add users and get better results forever however. With 20 users we don't improve anymore:

Throughput is the same as before (3 pages per second) but the average time to render a page is 5 second! The site is overloaded and is becoming slow.

Let's stress it a little bit more: 40 users!

Now, you get even less throughput than before, but you have to wait more to 10 seconds on average to get a page. If you try to navigate the site under stress the user experience is a slow site taking a  lot of time to render pages.

Definitely, the site limit of our setup (completely unrealistic however) is around 10-15 users and you need to add Satellite Servers to horizontally scale the site.

Ensure success to your Fatwire Project / 2

In a previous article about ensuring success of your FatWire project, I focused mostly good content model design . Today I am focusing on  appropriate template design: why you should design your templates before coding them, and how.

Why you need good template design

Once you have a good content model, it is time to go for designing  the template hierarchy.

Actually, you need a design for templates. Fatwire has some requirements on template naming built-in in the underlying logic of their tags. Here is a post that tries to explain the underlying ideas of Fatwire template coding. Basically, in a good design, content model types looks like classes, while templates looks like methods.

Well designed templates have a simple name, the code is short and straight forward, and it is very easy to read. Fatwire tags for templates are very verbose, with an overwhelming number of options. But using them in a consistently way will make your code readable.

You can check FatPhone template source code for some examples of how template should be named and coded. Those  examples are not actually my personal opinion but they follow closely Fatwire best practices, examples and recommendations (I was a trainer for FatWire).

Actually,  some so-called "Fatwire developer" (people that not only don't take any training classes but don't even bore of reading manuals) don't understand the design. Well, they  don't even understand  the meaning of many parameters (for example the parent, the context, even the appropriate use of c and cid), and write templates badly.

The biggest and more frequent mistake I have seen are templates  with very complex Java coding , whose structure and naming coded shows clearly the code don't understand there is an underlying caching system.

For example, they store a parameter as an attribute  and they read it in another template that can be actually cached!!! The result  lead to unnecessary long code and repetitive code, full of  tricks written in Java. And, most important, those templates do not cache properly.

So here there are my advices.

Do:

• Think before code. This should be done always. But it looks like that when it comes to implement a Fatwire site, since you have the psd, you have the html, you have the css, since you are late (as always) it looks like you just have to drop templates in Fatwire and you are done. Big mistake.
• Identify common parts. Look to each page and find out which parts are the same everywhere. They are good candidates to define standalone templates.
• So, checking carefully the html of your site, design a template hierarchy. Decide what is in the wrapper, in the layout, in the body, in the detail, for the link and so on. Be consistent.
• Write down this structure in paper, and be sure it matches the content model. Double check every template and be sure that is make sense. Remember: each template applies to a type so it is basically a method of a class.
• Use consistent meaningful naming. Each template must have a name that is simple and meaningful in context. So a name like Summary of an Article makes sense. Names like Template123 or LeftMenuForBoxWhenBreadcumpIsLongertThan2 do not.
• Remember: If you have a good design, your site will work. If you don't have, it won't.

Do not:

• Skip completely the template design phase and rush to code .
• Create a template for everything that render to a full html page.
• Split html according and give random names to each template according the mood of the moment.
• Ignore compositional dependencies and caching strategies until it is too late

Sadly, I have seen by far too many sites built this way.

The result normally is:

• an explosion of templates all different with inconsistent naming
• a lot of duplication of code
• different ways to do the same thing in inconsistent way (e.g. a breadcrump recoded everywhere)
• a site  completely ummaintenable
• completely broken cache with devastatingly bad performances
• publishing completely broken since many dependencies are wrong

But I am sure it won't happen to you!

Improving the FirstSiteII URL Assembler

Recently, in the independent Fatwire Developer Yahoo Group someone was asking how to get symbolic URL instead of numeric ones. Since I have a good experience writing URL Assemblers, I decided to write a blog post about improving the more commonly used  URL Assembler: FistSiteII url assembler.

FirstSiteII url assember and its limits

When writing a custom URL Assembler for FatWire, the normal starting point is the FirsSiteII URL assembler that is provided by Fatwire as an example.

A common complaint about the FSIIAssembler is  generated URLs looks like this:

http://localhost:8080/cs/Satellite/FirstSiteII/FSII/Product_C/123445678/12345679

They are certainly more friendly than the "c=Product_C&cid=12345678&p=12345679"  generated by default (using the QueryAssembler, actually), but they are not yet very useful for SEO, since there  meaningful informations  required by search engines are still missing from the URL.

So I will show in this post how to improve the FirstSiteII URL assembler to replace numeric ids with symbolic names, in order to get URLs like this:

In an ideal world I can released the full changed code for the fixed URL Assember, but as far as I know this code is  proprietary, so I cannot release it with my modifications. If someone from Fatwire is willing to give me the authorization, I will make all the code available.

In the meanwhile however, I wrote an helper class where the bulk of the code goes, and I can release it os github since it is all my code. The code is  now part of the FatStart project, and it is available here: AssemblerHelper source code.

So basically, getting that class and following my instructions you should be able to easily duplicate my efforts, as long as you can get the FSIIAssember source code from Fatwire (and as a regular Fatwire customer, you can just ask the Support).

What AssemblerHelper does

The underlying idea of the AssemberHelper is replacing cids with asset names. So for example, instead of using the cid 1234568 for the page named FSIIProducts,  in the url there will be exactly FSIIProducts. This replacement can be applied (or cannot applied, depending on your preferences) to the parameter p as well. I have done it but it is not strictly required.

AssemblerHelper provides 2 static methods:

• name2cid(c, cid)
• cid2name(c, name).

The "c" (the current asset type) is  always required since you need to query for the "name" field by the "cid" in the "c" table. When you do the reverse, it is still a lookup in the "c" table for the id of a rows with the given "name".

Actually, uniqueness of names is no more enforced in all the versions of Fatwire, so there is the danger that a cid cannot be replaced with an UNIQUE name. So in the code there is a provision that when a name is not unique, no replacement is done (name2cid will return the numeric cid instead of the corresponding name).

The resulting name is also URL encoded, so if can be used in URLs. Furthermore, since there is the danger of SQLInjection, I added some code to detect quotes and to filter out dangerous URL to reduce the risk.

The decoding method (name2cid) will translate a symbolic name back in as a numeric c, searching for the id of an asset of the given type with that name. The method will take care of the url decoding as well.

Adding the encoding to the FSIIAssembler

Once you have the AssemblerHelper code, you got the FSIIAssembler code, there are only a couple of modification required in order to use my AssemblerHelper.

In the getPath method the url is built concatenating some elements. The current cid is stored in data.cid, the current p is stored in data.p, and current c is stored in data.c

Locate the code that builds the returned path (it is easy, as long as you can read Java) and  replace references to data.cid with AssemblerHelper.cid2name(data.c, data.cid) (you need an"import com.sciabarra.fatwire.*" in your source code as well).

If you want to replace also the ∫with a simbolic name, you have to add also AssemblerHelper.cid2name("Page", data.p).

That is all for the encoding.

Adding the decoding to the Wrapper Page

Fatwire actually do the decoding in the SatelliteServer. Since the decoding requires access to the database, it cannot be performed on remote Satellites. For this reason,  the actual  decoding of the name back into a cid is performed in the wrapper page.

However, before adding the decoding in the wrapper page, an additional modifications must be done in the FSIIAssembler. There is a check that cid and the p are actually numeric in valueOf method of the inner class FSIIAssemblyData. Since now the cid and p can be string, that check must be removed. So, just locate the exception surronding the Long.valueOf(cid) and comment it out. Do this also for the Long.valueOf(p) if you have replaced also the p with a symbolic name.  That is all for the URL assembler.

Now it is time to add the conversion from the name to an id in the WrapperPage. Open the FSIIWrapper CSElement and look for the render:satellitepage tag. Replace arguments

<render:argument name="cid" value="<%=ics.GetVar("cid")%>"/>
<render:argument name="p" value="<%=ics.GetVar("p")%>"/>

with

<render:argument name="cid" value="<%=
com.sciabarra.fatwire.AssemblerHelper.name2cid(ics.GetVar("c"),ics.GetVar("cid"))%>"/>
<render:argument name="p" value="<%=
com.sciabarra.fatwire.AssemblerHelper.name2cid("Page",ics.GetVar("p"))%>"/>

And now you are done.

Notes on performance

This solution is a potential performance killer since it performs a query for each URL requests. Fatwire has a ResultSet cache, so this problem could be not an issue, but if it is (maybe because there are too many different requests so the query cache cannot cache enough result sets) my suggestion is to add an additional caching level, storing name2cid mapping in an HashMap. I would use a WeakHashMap (so memory won't be an issue) and store the hash map in the application context, but I have not tried this solution so far. It is left as an exercise for the reader...

Database Manager for JumpStart

If you use Oracle or SQLServer, you can always access the database with a SQL Interface: just use the client provided with your database.

A database client is useful for many tasks: I usually manage the cache, look for the fields I have to use in code, do mass changes to assets accessing directly to the database.

But if you use a recent Jump Start for development, you do not have such a luxury... apparently.

Actually, Jump Start Kit ships with HSQLDB as a database. It is a java only database running embedded in tomcat. In fact, it HAS an SQL client, already included in his jar. But there was no way to activate it... until now. Here is the trick.

The simplest way I found is just to add the file dbman.jsp file under the App_Server/apache-tomcat-6.0.18/webapps/cs. The code of this script is simply:

<%
String s = "jdbc:hsqldb:file:"+getServletContext().getRealPath("/")
+"../../default/data/hypersonic/csDB";
org.hsqldb.util.DatabaseManagerSwing.main(new String[]{ "--url",s });
%>

This code tries to be independent of the actual installation folder of the database, but I have tested so far only in my installation.

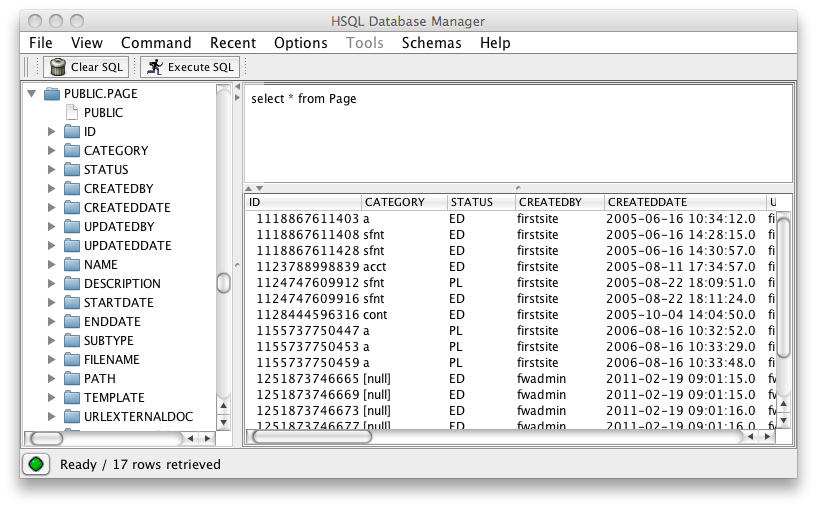

Now you can call http://localhost:8080/cs/dbman.jsp and you will have access to the following window:

Please note this works only with the JumpStartKit running in your local machine because it opens a new GUI window, not a web interface.

Use the subtypes, Luke!

You already use assets types... so you already have the force with you!

But sometimes asset types are just not enough. So you have to learn how to use the force better.

For example, let's assume you have a  lot of Page, but those Pages should be  rendered in different way, if they are placed in different location of the siteplan. So which implementation strategy are you going to use?

I have seen a lot of different solutions to this problem, very often involving  complex logic on the siteplan or extra parameters.

If you use the position in the siteplan, it can break easily, while extra parameters are a pain in the ass when it comes to caching.

Actually, the correct solution is to use subtypes.  More in the detail:

• create a subtype for the different page renderings,
• select the subtype when you create a page
• use the subtype to dispatch to the correct rendering code.

Create a subtype and assign it

Go into the Admin panel, select Page and open it: you will see the subtype node; this will give you the opportunity to add a new subtype:

Now, when you create or edit a page, you can now see a pull down allowing to choose your subtype:

Recognize the subtype in the code

Now you can forget about passing spurious parameters or complex siteplan logic. When it comes to to render a page, read the subtype with asset:getsubtype, the call a different template according to the subtype. For example (look at the bold code):

<asset:getsubtype
 type='Page'
 objectid='<%= ics.GetVar("cid") %>'
 output='subtype'/>
<render:calltemplate
 tid='<%= ics.GetVar("tid") %>' site='<%= ics.GetVar("site") %>'
 c='<%=ics.GetVar("c") %>' cid='<%=ics.GetVar("cid") %>' slotname='Body'
 tname='<%=ics.GetVar("subtype")+"/Body"%>'>
</render:calltemplate>

This is a typical case for a "Body" template; if you have defined  Home and  Body subtypes, the code will dispatch to an "Home/Body" template and a "Content/Body" template according to the subtype of the page.

How JRebel saved my life (almost)

This post is both an advice and a short story in the life of a Fatwire consultant.
Some time ago I faced one of the most challenging tasks I can remember. It was not particularly hard from the technical side but it was very hard given the time constraint and the environment I had to work.

Basically I had to "fix" (let's say so) an URL Assembler to create some special behaviours for some specific assets. Normally I develop my URL assembler in the Jump Start so I can restart quickly and freely. In that special case, I had to work on a development server because the URL Assembler was actually dependent on the content.
The problem was the specific development server was hosted in a JBoss server in a pretty slow machine, and shared by two other developers that were working on it at the same time.

Restarting the development server was taking each time something close to 5 minutes, and everytime I restarted it, immediately I received phone calls, instant messaging or people coming to my desk very angry saying "have you restarted again"? The time constraint was also very tight, I had to complete that task in a couple of days... but it was very likely I had to restart a number of times because it was a trial and fail process. The situation was looking desperate and I was ready to admit failure and face the consequences, when someone suggested to use JRebel. the dynamic code reloader for Java.

While I was aware of the existence of that tool, I never considered it. I was expecting a complex installation procedure, a very slow server afterwards, a lot of incompatibilities. But I was desperate enough to give at least a try.
To my great surprise, installation was very easy (just copy a jar in a folder and copy and paste a configuration in the launcher script). And when the application server was restarted it was looking to work perfectly. So I did the last step: I ensured that the compiled binaries of the class went directly in the classes directory of the cs.war and I started to code.

Every time I was building the class (actually just saving a class in Eclipse since it recompiles automatically) it got reloaded, without affecting the rest.   A miracle!  I was able to complete the task on time, and without other peole yelling at me.

The bottom line is: when you have to code in Fatwire something that is a class... JRebel is very likely to be a great time saver (and a life saver as well, sometimes...).

Assets as classes, Templates as methods

When you design a content model and its related templates in FatWire, it helps thinking  you should consider Asset types as classes, and Templates as methods, that apply to those classes to render the content.

Although it may sound odd, here a few examples.

Let's start from a Page (that is a common asset you normally use as is). Which methods can you apply to this class? Well, methods here always refers to rendering methods.

It is common you want to display a page like a full page. Because normally header and footer are managed by the Layout, you can call the method Body. So Page/Body is a template (working like a method) that renders a Page in full, as a body. Another case that happens is that I just want to render the Page  like a simple Link. Here another method can help, let's call it  Page/Link. It is also very common you want also render a Summary with Page/Summary.

Now let's consider another type, for example a user defined type like Article; if it is a class, which methods we should use? Obviously we can think of something like before: Article/Body to render an article as the body of a full webpage, Article/Link to render it as a simple linke, and Article/Summary to render just a summary of it.

The underlying idea

Now, it is important to understand that we should use common method names, and  for a precise reason: if you add to a container an Article or a Page, and you want  to render, for example, a list of summaries to Page or Articles, you can do it without having to write  code to distinguish the different cases.

So, good rules to follow when designing (or naming) the templates are:

• decide and use a common naming conventions for templates. For example Summary,Link,Body etc
• give a type, and better a subtype, to each template you use
• reserve the "apply to many type templates" only to a few templates that (like the Layout) really apply to different types

You have to consider that whey you perform a "call template", calling the same template name for different types must template equivalent in function  for that type.

Put simply, a call template for "Summary" must call the Page/Summary if the requested asset is a Page; or Article/Summary if the page is an Article. And both must produce valid html, good for any summary in the design of your site.

This is one of the most powerful (and misunderstood) feature in Fatwire ContentServer.
